Introduction
A damaged or fully discharged battery can ruin your entire day, whether you're going to the office, preparing for a longer trip or wanting to replay equipment used to suit the weather. Often the main reasons for battery damage are improper charging, leaving without use for long periods of time, or using older chargers that continue to provide power even after the battery is fully charged.
The 6V and 12V automatic battery charger provide an effective solution to these problems. It continuously monitors the battery's voltage and automatically controls the charging process. Unlike conventional chargers, smart chargers provide advanced features such as battery aging, protection against overcharging, and multi-stage charging, reverse polarity protection and maintenance mode.

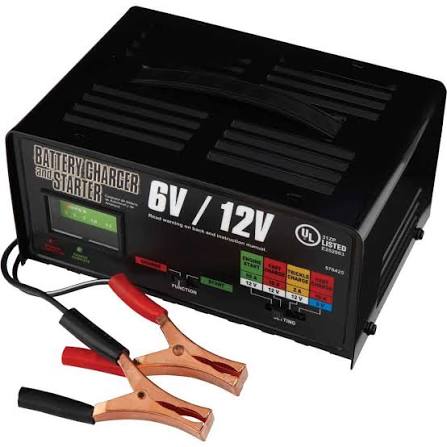

What is a 6V and 12V automatic battery charger?
The 6V and 12V Automatic Battery Charger is a microprocessor-controlled device designed to safely charge batteries with different types of compatibility. It automatically identifies the battery voltage and maintains the charging current at an appropriate level without continuous monitoring.
Most standard chargers charge bulk first, then transfer to absorption charging and finally to float mode when the battery is fully charged. This intelligent mechanism improves battery performance and reduces high heat or unnecessary waste of water in lead-acid batteries.
Manual charger vs smart charger
Manual charger
The manual charger continues to provide current until the user turns it off on its own. If not disengaged on time, the risk of overcharging and battery damage increases.
Smart charger
The smart charger constantly monitors the condition of the battery. As the battery is fully charged, it automatically reduces charging and maintains the battery at a safe voltage through maintenance mode.
Explain the charging steps
Bulk Charging (Bulk Charging)
In this phase the charger provides maximum safe current so that most of the battery capacity can be restored as soon as possible.
Absorption Charging (Absorption Charging)
In this phase the charging current gradually decreases while the voltage is maintained at a suitable level. This makes the battery fully charged without additional pressure.
Float mode (Float Mode)
The charger is transferred to float mode once the battery is fully charged, where it maintains the battery at a reasonable voltage without overcharging it.
Maintenance mode (Maintenance Mode)
Many modern chargers check battery condition periodically and only recharge when needed. This is why they are the best choice for weather-consuming vehicles and batteries that can be stored for long periods of time
Which batteries does it support?
Choosing the right charger depends not only on the voltage but also on the battery chemistry.

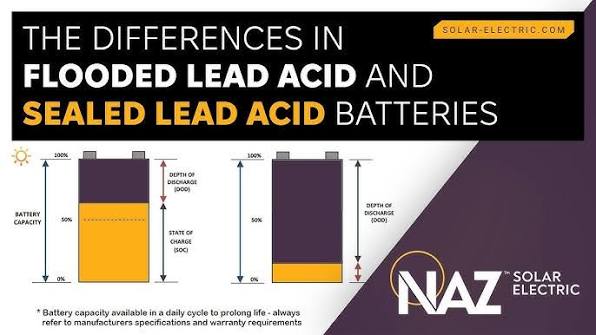

Flooded Lead Acid Batteries (Flooded Lead-Acid Batteries)
These are the most common automotive batteries and require secure charging to prevent excessive gas generation.
AGM batteries
The Absorbent Glass Mat (AGM) batteries are fully sealed, so they must be charged at the correct voltage to maintain their performance.
Gel Batteries (Gel Batteries)
Gel batteries require a lower charging voltage than flooded batteries. If an unsuitable charger is used for them, the battery life may be reduced.
Deep Cycle Batteries (Deep Cycle Batteries)
These batteries are commonly used in RV, Marine, Golf carts and solar backup systems. Smart charging improves their cycle life.

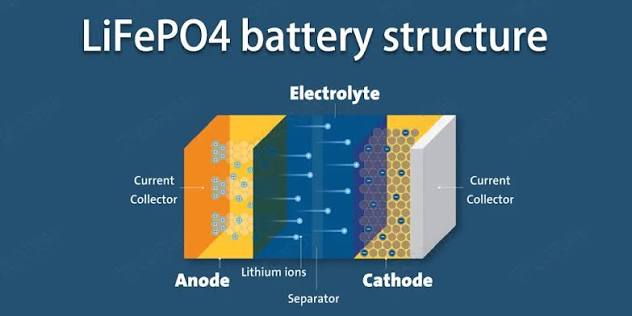

LiFePO4 batteries
Some automatic chargers provide a charging profile specific to Lithium Iron Phosphate (LiFePO4) batteries. However, always verify your charger supports lithium batteries before use.
What is the difference between 6V and 12V batteries?
Although both store electrical energy, their areas of use vary.
Use of common 6V batteries
Classic cars
Old motorcycles
Antique tractor
Children's ride-on vehicles
Lawn and gardening equipment
Use of common 12V batteries
Passenger vehicles
SUVs (SUVs)
Pickup truck
Motorcycles.
Boats
RV (RVs)
ATVs (ATVs)
Utility trailers
Modern automatic chargers automatically identify whether the connected battery is 6V or 12V, reducing the chances of incorrect settings and increasing safety.
Important features that should be paid attention to
Just looking at an ampere is not enough to choose the right charger. Safety features and intelligent charging systems are equally important.
Automatic Voltage Identification (Automatic Voltage Detection)
The charger automatically identifies whether the battery is 6V or 12V and selects the appropriate charging profile accordingly.
Microprocessor controlled charging
The modern microprocessor continuously monitors the battery's voltage, charging current and overall condition to enable maximum effective charging.
Multi-stage charging
Bulk, absorption and float charging together extend the battery life and reduce the pressure on the internal plates.
Reverse polarity protection
The charger does not start charging if the battery clamps are misplaced, reducing the chances of damage.
Overcharge protection
When the battery is fully charged, the charger automatically stops charging so that the battery is safe.
Short circuit protection
Additional security systems protect both the charger and battery from short circuits or other unusual conditions.
Battery repair mode
Some modern smart chargers attempt to restore light sulfation-bearing lead-acid batteries through desulfation technology. While it may not fully restore every damaged battery, it may in some cases improve battery performance.
LCD or LED display
The digital display clearly displays information on the current state of charging, battery voltage, selected charging mode and possible faults.
What is the difference between 6V and 12V batteries?
Although both store electrical energy, their areas of use vary.
Use of common 6V batteries
Classic cars
Old motorcycles
Antique tractor
Children's ride-on vehicles
Lawn and gardening equipment
Use of common 12V batteries
Passenger vehicles
SUVs (SUVs)
Pickup truck
Motorcycles.
Boats
RV (RVs)
ATVs (ATVs)
Utility trailers
Modern automatic chargers automatically identify whether the connected battery is 6V or 12V, reducing the chances of incorrect settings and increasing safety.
Important features that should be paid attention to
Just looking at an ampere is not enough to choose the right charger. Safety features and intelligent charging systems are equally important.
Automatic Voltage Identification (Automatic Voltage Detection)
The charger automatically identifies whether the battery is 6V or 12V and selects the appropriate charging profile accordingly.
Microprocessor controlled charging
The modern microprocessor continuously monitors the battery's voltage, charging current and overall condition to enable maximum effective charging.
Multi-stage charging
Bulk, absorption and float charging together extend the battery life and reduce the pressure on the internal plates.
Reverse polarity protection
The charger does not start charging if the battery clamps are misplaced, reducing the chances of damage.
Overcharge protection
When the battery is fully charged, the charger automatically stops charging so that the battery is safe.
Short circuit protection
Additional security systems protect both the charger and battery from short circuits or other unusual conditions.
Battery repair mode
Some modern smart chargers attempt to restore light sulfation-bearing lead-acid batteries through desulfation technology. While it may not fully restore every damaged battery, it may in some cases improve battery performance.
LCD or LED display
The digital display clearly displays information on the current state of charging, battery voltage, selected charging mode and possible faults.
How to choose the right charger?
Not every charger is suitable for all types of battery or vehicle.
Select the charging current according to the battery capacity
Low charging current is appropriate for small motorcycle batteries, while chargers with more amperes for larger vehicles or marine batteries yield better results.
Check the battery chemistry
Before buying the charger, confirm which of your batteries is Flooded, AGM, Gel or LiFePO4.
Take into account the storage requirement
If your vehicle is not used for several weeks or months, select a charger that has float mode and maintenance charging facility.
Also consider portability
Smaller and lighter chargers are best for home garages and emergencies, while workshop-grade chargers provide additional amenities such as more high-speed charging and engine start.
Which vehicles are suitable for?
A standard automatic battery charger can be used with a variety of vehicles and devices, provided the battery conforms to it.
Passenger vehicles
SUVs (SUVs)
Pickup truck
Motorcycles.
ATVs (ATVs)
Boats
RV (RVs)
Lawn tractor
Snowmobiles
Classic cars
Seasonal use equipment
This omnidirectional use is a noun
Step-by-step method of charging the battery safely
Accurate use of 6V and 12V automatic battery charger improves battery performance and reduces the risk of premature battery damage. Proper charging not only increases battery life, but can also preserve the vehicle's electrical system.
Step 1: Inspect the battery
Check the battery thoroughly before connecting the charger. If there is a crack, leakage, rust, loose terminals or swelling in the battery, do not charge it at all because such a battery can prove dangerous while charging.
If possible, check the battery voltage with the help of a digital multimeter. This will give you an idea of the current condition and charge level of the battery.
Step 2: Turn off the car
Turn off the vehicle's ignition completely before installing the charger and remove the key. Also turn off headlights, cabin lights, infotainment systems and other electrical appliances so as not to use unnecessary electricity.
If the electrical appliances continue to run while charging, charging speeds may decrease and the battery may take longer to fully charge.
Step 3: Connect the charger correctly
First connect the red (Red) clamp to the positive (+) terminal of the battery. Then connect the black (Black) clamp to the negative (-) terminal or appropriate chassis ground as directed by the vehicle's manufacturer.
Most modern smart chargers have reverse polarity protection, but still be sure to verify the correct clamp position before turning on the charger.
Step 4: Select the correct charging mode
Choose the appropriate charging mode according to your battery type. Modern chargers generally provide separate modes for Flooded Lead-Acid, AGM, Gel and LiFePO4 batteries.
By choosing the right mode the charger provides the appropriate voltage throughout the charging cycle and maintains battery performance.
Step 5: Start charging
Turn on the charger after confirming all settings. The intelligent (Smart) charger first starts Bulk Charging, then transfers to Absorption Charging and finally Float Mode.
Do not remove the charger before charging is complete as incomplete charging can reduce battery capacity over time.
Step 6: Remove the charger safely
First turn off the charger, then first remove the negative (-) clamp and then remove the positive (+) clamp to reduce the chances of spark being generated.
Always keep the charger in a clean and dry place after use so that its electronic parts and cables are safe.
Common mistakes made while charging
Often the reason for battery damage is not poor battery quality but wrong charging method. The battery life can be significantly increased by avoiding these mistakes.
Using the wrong voltage
If the 6V battery is charged in 12V mode, the battery may permanently malfunction. Always check the battery voltage before starting charging.
Choosing the wrong battery chemistry
AGM, Gel, Flooded and Lithium batteries have separate charging profiles. Choosing the wrong mode can affect battery performance and age.
Charging a damaged battery
Never charge a battery that has cracks, leakage or swelling. It is safer to replace such a battery immediately.
Remove the charger before charging is complete
Many people remove the charger before the battery is fully charged. Always let the charger complete the entire charging cycle so that the battery can achieve its full capacity.
Not having proper ventilation
Lead-acid batteries can emit hydrogen gas while charging. Always charge in a place where there is adequate air passage and no source of fire or spark.

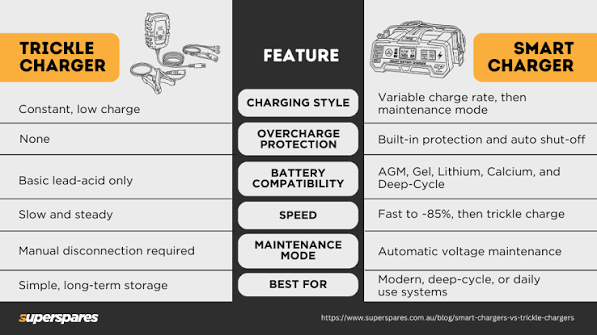

Smart Charger vs Trickle Charger
Although both chargers are used to charge a battery, their technology and performance vary significantly.
Feature Smart Charger Trickle Charger
Charging control fully automatic continuous low current
Overcharge protection present usually does not exist
Limited float mode available
Battery monitoring continuously limited
Suitable for long term yes is not recommended
Battery life more relatively less
Smart chargers are considered a safer and more effective choice for modern vehicles, motorcycles, RVs and marine batteries.
Battery voltage reference chart
The battery's voltage provides important information about its health.
Battery voltage battery condition
12.8V full charge
12.6V healthy battery
12.4V about 75% of the charge
12.2V about 50% of the charge
12.0V low charge
Severe discharge less than 11.9V
Regular voltage checks detect the weak battery in time.
Estimated charging time
Charging time depends on battery capacity, charger power and current battery condition.
Battery capacity 2A charger 4A charger 10A charger
20Ah 10–12 hours 5–6 hours 2–3 hours
40Ah 20 hours 10 hours 4–5 hours
60Ah 30 hours 15 hours 6–7 hours
80Ah 40 hours 20 hours 8–10 hours
100Ah 50 hours 25 hours 10–12 hours
The actual charging time can vary according to the battery's age, temperature, discharge level and charger performance.
Seasonal battery maintenance advice
The change of weather has a direct impact on battery performance, so proper maintenance is essential in all seasons.
Battery maintenance in winter
Low temperatures reduce battery capacity and require more power to start the engine. Always keep the battery fully charged in winter as the risk of low charge battery freezing is high.
Clean the rust on the battery terminals before the cold weather starts to improve the power flow.
Battery maintenance in summer
High temperatures accelerate chemical processes within the battery and can cause water loss in flooded batteries. If possible, park the car in a shaded area.
If the battery is serviceable, check the electrolyte level periodically and keep the terminals clean.
In case of keeping the car parked for a long time
If the vehicle is not in use for several weeks, keep it connected to a smart charger with maintenance mode. This will not automatically discharge the battery and will not overcharge.
Disconnect unnecessary electrical appliances so that unnecessary loads do not occur on the battery.
Useful tips for aging the battery
Charge the battery before it is fully discharged.
Always keep the battery terminals clean.
Tighten loose connections immediately.
Always use charging mode according to battery type.
Protect the battery from overheating.
Check the voltage from the multimeter every month.
Charge seasonal vehicle batteries every three to four weeks.
Keep the battery safe in a cool and dry place.
Replace the faulty charging cable immediately.
Always buy a charger that has safety features and automatic maintenance mode.
Expert mechanic opinion
One thing is clear from the years of experience working with automotive batteries that most batteries are damaged not because of a manufacturing defect but because of misuse and poor maintenance. Many also replace batteries that could easily last another year or two with accurate charging and proper maintenance.
Buying a standard automatic battery charger is much cheaper than buying a new battery over and over again. The right charging habits and regular maintenance significantly increase both battery performance and age.
Advantages and disadvantages
Benefits
Automatically identifies 6V and 12V batteries.
Protects from overcharging.
Compatible with various battery chemistries.
Extends battery life through multi-stage charging.
Suitable for long-term maintenance.
Provides advanced security features.
Easy to use.
Damages
High-quality smart chargers are relatively expensive.
Certain models do not support LiFePO4 batteries.
It takes longer to charge a larger battery than a charger with less ampere.
Battery repair mode cannot fully restore the severely damaged battery.
Frequently Asked Questions (FAQs)
Can a single charger charge both 6V and 12V batteries?
Yes, most modern automatic chargers both support voltage and automatically or manually select the correct mode.
Is it safe to leave the smart charger on overnight?
Yes, the standard smart charger battery automatically goes to Float or Maintenance Mode after full charge.
Can the AGM battery be charged?
Yes, provided your charger has an AGM battery-specific charging mode.
Can a smart charger completely revive a dead battery?
Some chargers provide Desulfation or Repair Mode which can improve a battery with light sulfation, but a severely damaged battery is usually best replaced.
How long should the battery be charged if the vehicle is not in use?
If the vehicle is not used regularly, charge the battery every three to four weeks or keep it connected to the maintenance charger.
Is a charger with more amperes always better?
Not necessary. The charger's ampere must be in line with the battery's capacity, as excessive current can shorten the battery's lifespan.
Result
The 6V and 12V automatic battery charger is a great investment for anyone who has a car, bike, boat, RV or seasonal use equipment. Intelligent charging technology protects the battery from overcharging, improves charging efficiency and significantly increases battery life through multi-stage charging.
Be sure to check the battery chemistry, charging ampere, safety features and long-term maintenance before purchasing the charger. A standard smart charger not only protects against unexpected battery malfunctions but also reduces the cost of replacing the battery in the future and keeps your vehicle ready to start in all seasons.
